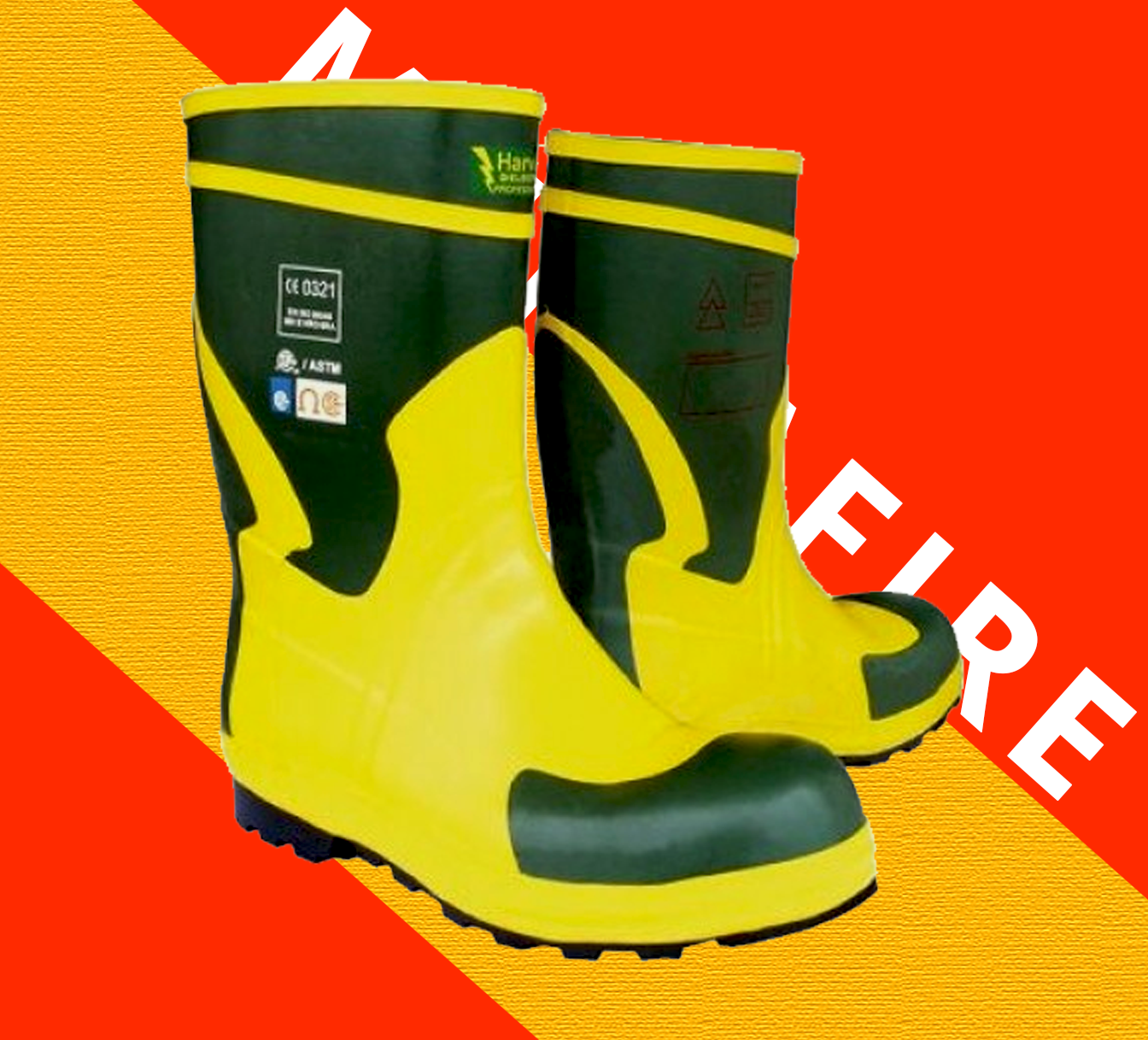

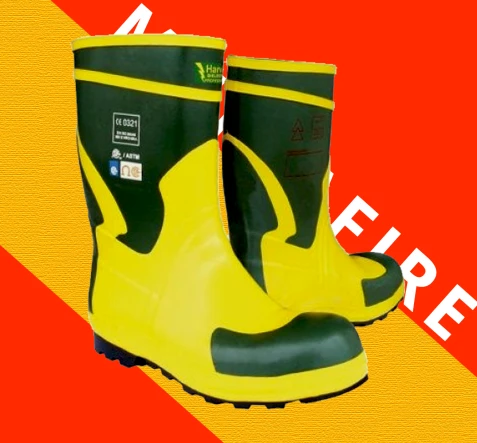

Type of construction • Vulcanized Rubber Upper and Sole
Last/ Sole Pattern • VSV/SNV
Specialty • Tested individual boots at 5kV (wet) • Optional testing @10kV (wet) or 35kV (dry)
Recommendation • For working environment with high voltage hazards • Power station operations • Substation (step-up/ step-down/ distribution) operations • Electrical hazards with wet condition/ water exposure • High current leakage hazards • Electrical installations
Lining Material • Selected polyester grade for electrical insulation • Comes with extra comfort and durability
Upper construction • Waterproof (Electrically verified) • Reinforced rubber upper • High visibility with green and yellow contrast • Easy for cleaning
Sole / Heel • Electrical shock resistant sole suitable for high voltage/ current environment • Fuel oil resistant sole suitable for inimical environment • Slip resistant vulcanized rubber outsole • Excellent abrasion resistant for extra durability • Heel energy absorption design to minimize the heel impact • Catered to enter high temperature
Inlay Sole • Comfort Core 5 (CC5) inlay sole to provide extra comfort to foot
Steel Toe Cap • Epoxy coated toe caps for anti-corrosion • Meets EN ISO 20345 impact and compression tests • Metal toecap provides reliable protection in cold & hot environments
Steel Shank • Doubled ribbed ladder shank for improved midfoot stability and support
Chemical Resistance • Sole & Upper – Good resistant towards acids and alkalis
Finishing • Lacquer coating for weather protection
